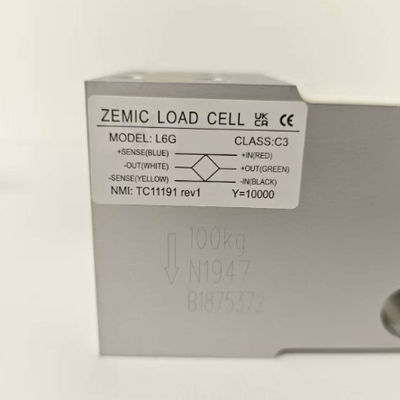

Zemic Load Cell 100kg Weight Sensor L6G Class C3

1 pièces
MOQ
Négociable
Prix
Zemic Load Cell 100kg  Weight Sensor L6G Class C3
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Matériel: Aluminium
Théorie: Capteur de résistance
Sortir: Capteur analogique
Usage: Balance
Charge nominale: 100 kg
Type de montage: Vis
Mettre en évidence:

Zemic 100kg load cell

,

L6G weight sensor

,

Class C3 weighing load cell

Informations de base
Lieu d'origine: Chine
Nom de marque: ZEMIC
Certification: CE OIML
Numéro de modèle: L6G
Conditions de paiement et expédition
Détails d'emballage: carton
Délai de livraison: 2-20DAYS
Capacité d'approvisionnement: 100pcs/m
Description de produit

zemic load cell 100kg Weight Sensor L6G class C3


Specifications:


Rated Load: 50kg~1000kg Insulation Resistance: ≥5000MΩ
Sensitivity: (2.0±0.1%) mV/V Operating Temp.Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.03% F.S Ultimate Over Load: 200%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation Vol.: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP65
Input Resistance: 385±5Ω Element Material: Aluminum
Output Resistance: 353±2Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation:

GB/T7551-2008

/ OIML R60


Zemic Load Cell 100kg  Weight Sensor L6G Class C3 0

Description:


1. Zemic L6G load cells are available in the capacities 50~1000kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments. Silicon adhesive sealed, surface anodized and anti-corrosion.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.

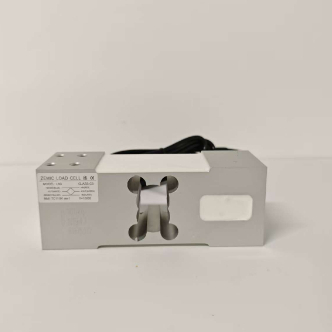

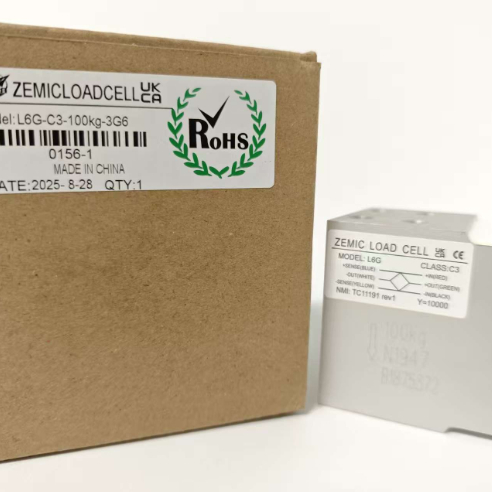

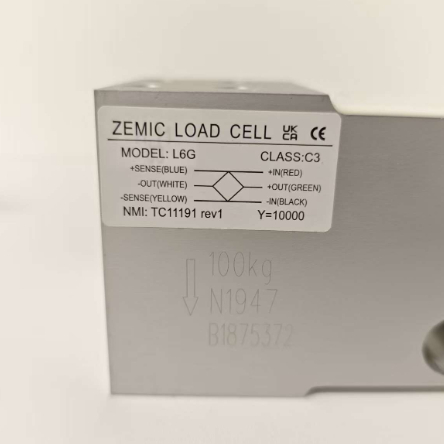

Zemic Load Cell 100kg  Weight Sensor L6G Class C3 1Zemic Load Cell 100kg  Weight Sensor L6G Class C3 2Zemic Load Cell 100kg  Weight Sensor L6G Class C3 3



Applications:


Suitable for pricing scales, platform scales and other electronic weighing devices.


Competitive Advantage:


1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design .

3. Good Service : We treat clients as friend.

4. Good Quality :We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder.
